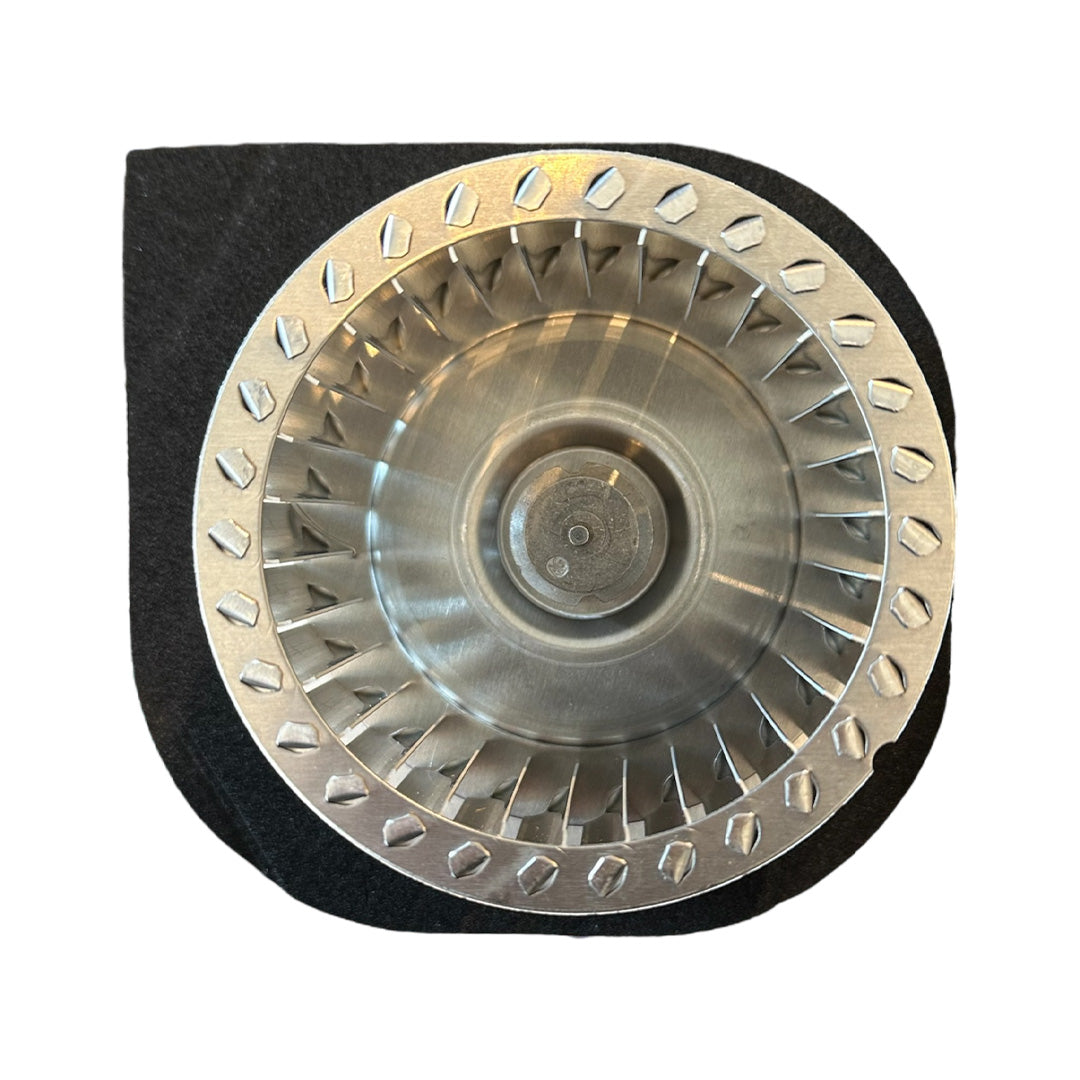

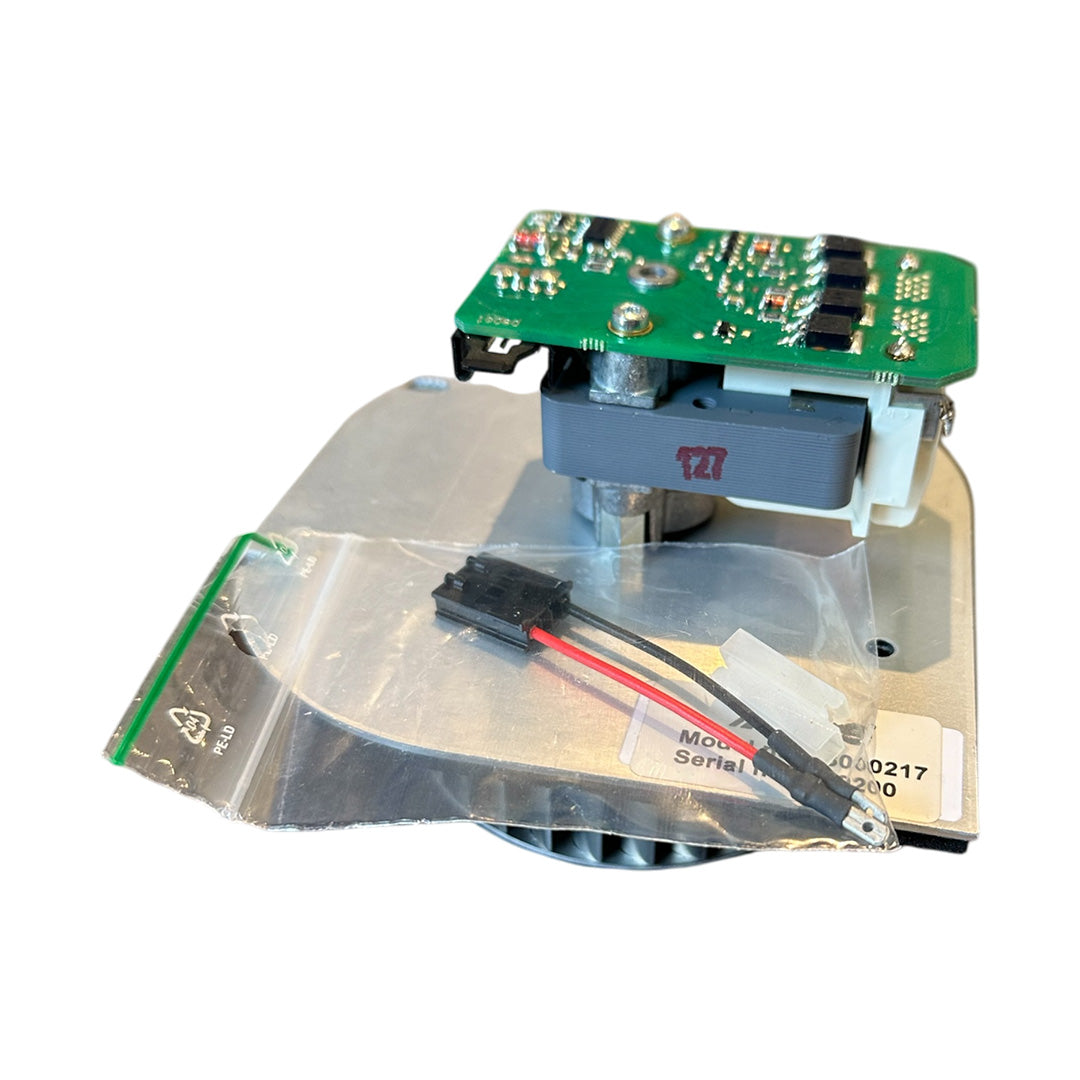

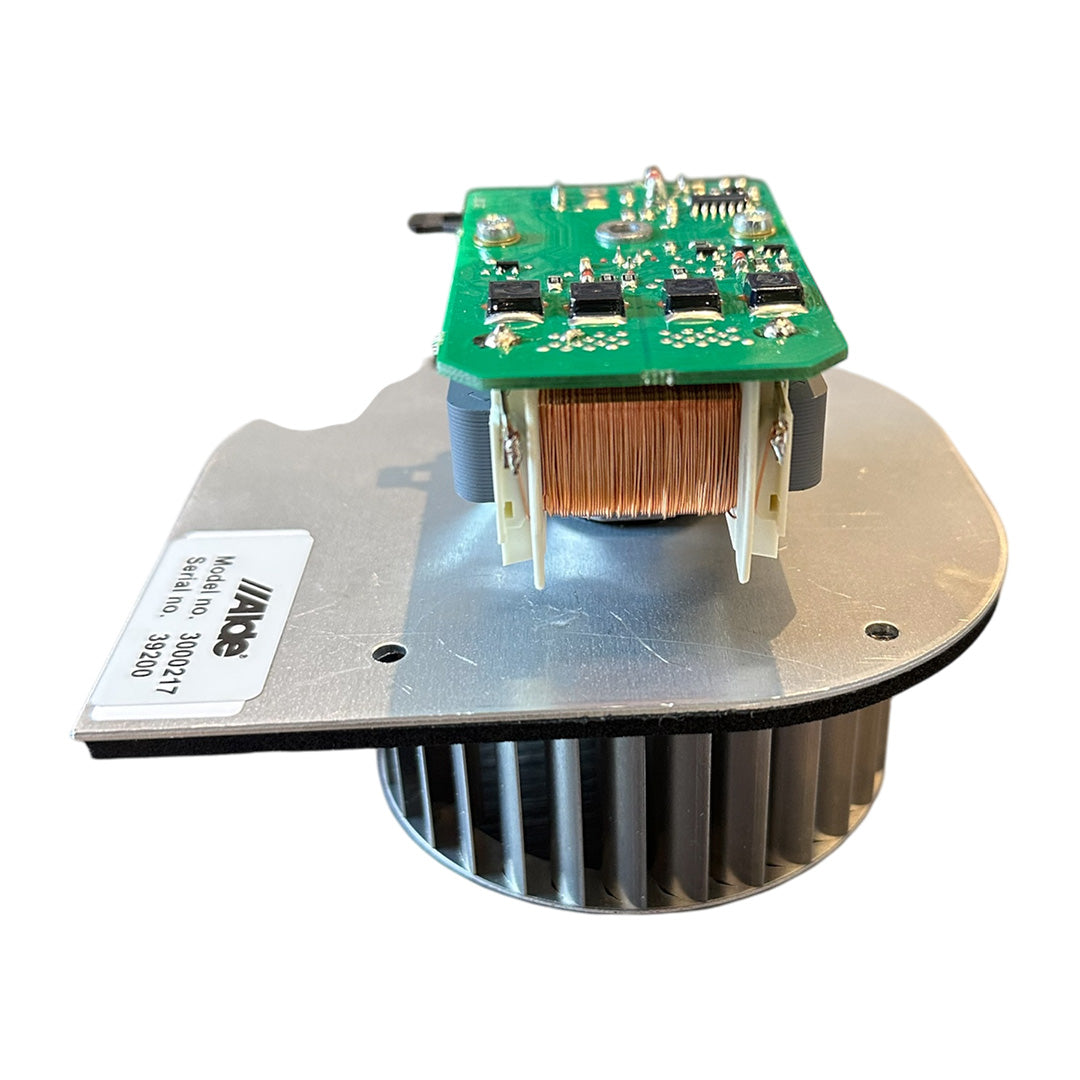

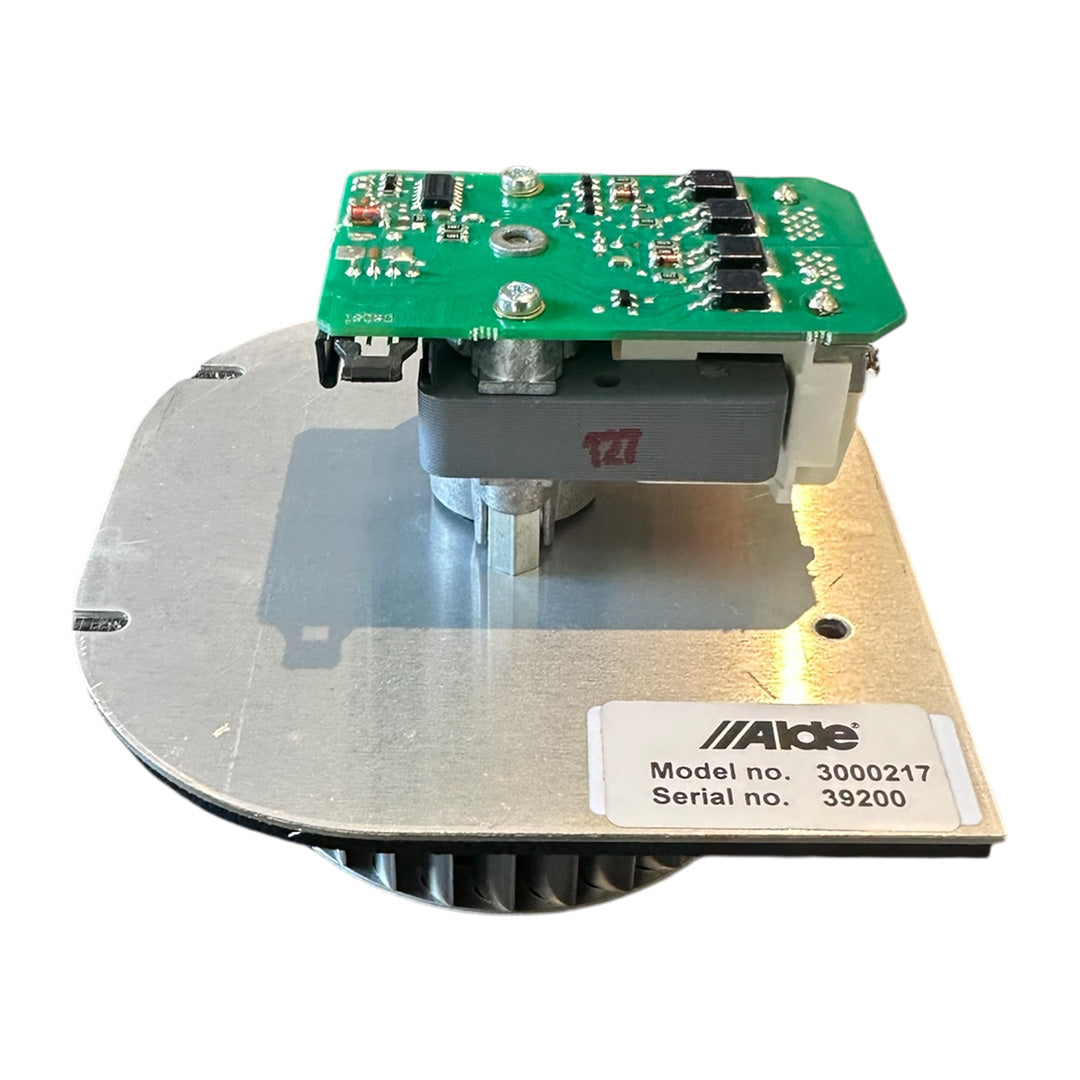

Alde Combustion Fan for Compact 3000/3010/3020/3030

Alde 9V combustion fan, designed for Compact 3000, 3010, 3020, and 3030 heating systems with roof flues. This genuine replacement part helps maintain efficient combustion and safe operation in Alde heating units. Suitable for caravan and motorhome installations.

ALDE Part Number: 3000452

Repair jobs are only to be carried out by an expert. Always switch 12V DC and 230 V ~ and switch off the gas to the main cock before commencing servicing. After the boiler has been serviced the service manual must always be filled in.

Compact 3010
1. Remove the service hatch on the boiler.

2. Disconnect the cable from the fan motor by lifting the hook
(Figure 1A) and pulling the cable straight out.

3. Loosen the plastic cover over the motor (wherever appli-cable), 2 screws (fig. 1B). It should not be reinstalled.

4. Remove the four plate screws (Figure 2A) that secure the
fan to the fan housing.

5. Lift the fan up from the boiler body.

6. Fit the new fan by following Instructions 1-5 in the reverse order.

NB! Be careful not to damage the fan wheel during mounting.

7. Replace the service hatch and test run the boiler.
